Helios IP Force
IP Intercom
Access Control
The Helios IP Force IP Intercom offers a smart and effective solution for secure Access Control and monitoring of a building entrance. Voice and video transmission are provided by standard SIP/RTP/RTSP protocols, which guarantee the best compatibility and integration with third-party IP systems.
The Helios IP Force is designed for operation in the most demanding conditions. The robust mechanical construction offers the highest protective coverage rating against dust and water and protection against mechanical damage (vandal-resistant). Numerous deluxe features of the Helios IP Force provide high user comfort and guarantee secure Access Control for any extreme environment.
An extremely durable IP intercom that can withstand even the most demanding conditions.
Building entrance Access Control and Monitoring solution
Real-time integration with Tensor's Facial Recognition Access Control
The Helios IP Force can send real-life video streams to the Tensor Facial Recognition Access Control System. The Facial Recognition Software will detect the face of the person looking at the camera and compare it against its existing database of authorized personnel (or possible blacklists). If a match is found, access is either granted or denied based on the person's specific credentials.
Frequently Asked Questions
Key features and benefits
| IP FORCE SPECIFICATIONS |
|---|
| Full integration with Tensor's facial recognition access control |
| Maximal resistivity against dust, water, and mechanical damage |
| High clarity and volume in noisy environments |

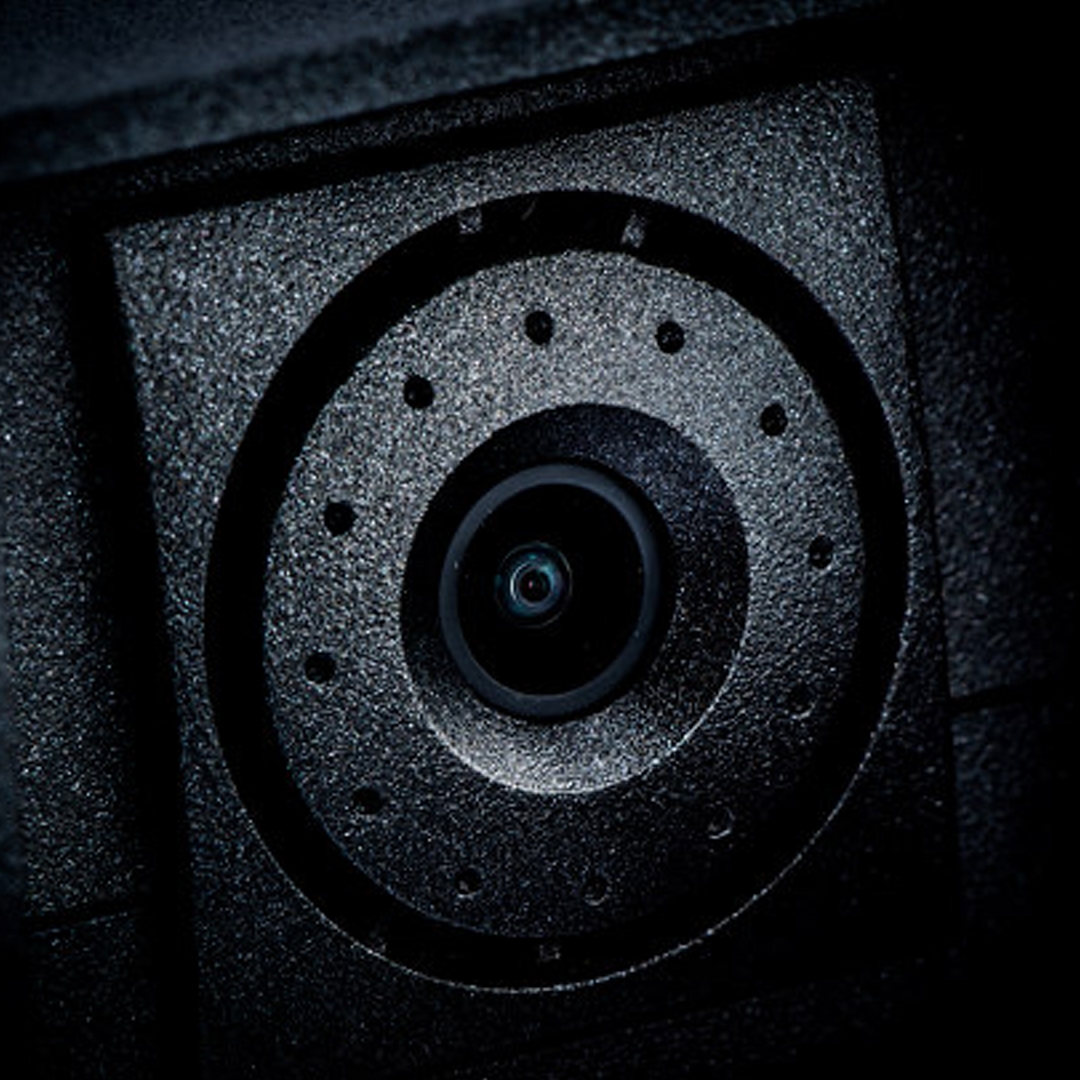

| Wide-angle colour camera with night vision |

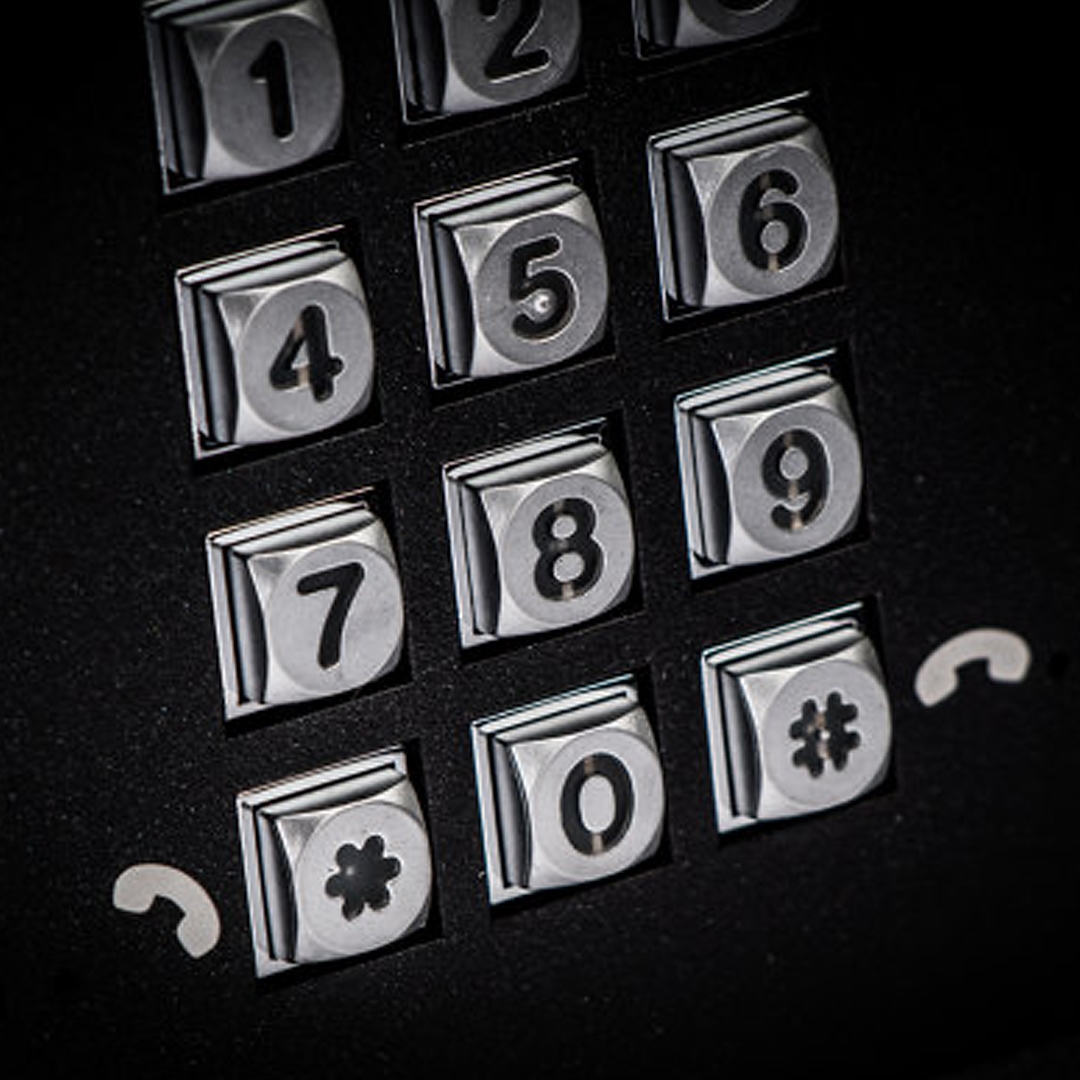

| Illuminated buttons and backlit keyboard |

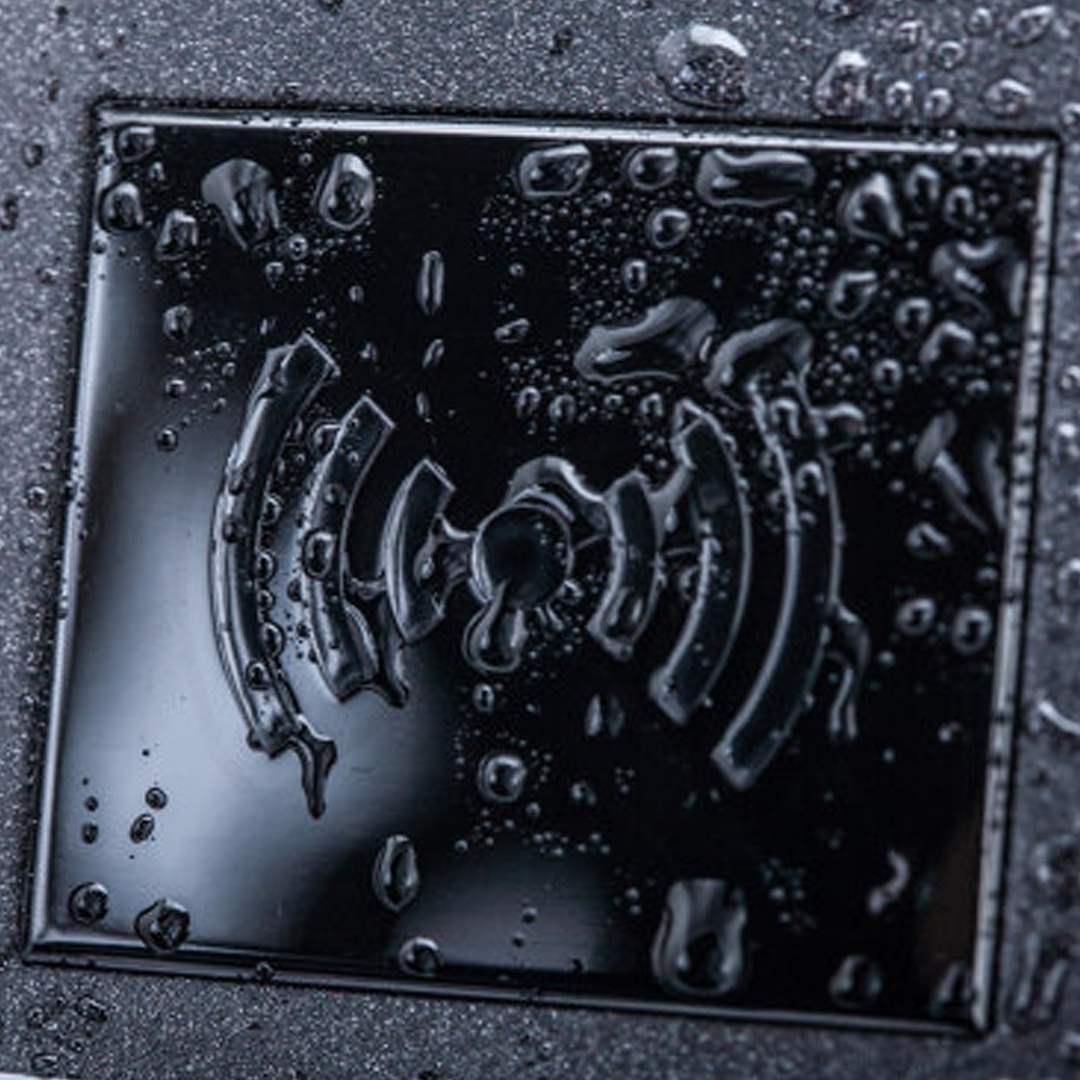

| Integrated RFID card reader |
| Wide-angle colour camera with night vision |
| Illuminated buttons and backlit keyboard |
| Integrated RFID card reader |
| Secure admission to the building of authorised people at selected times |
| Entrance monitoring and following the movement of people |
| Interconnecting with other security systems in the building |
| Visual and voice navigation — suitable for disabled people |
| Easy installation and integration into the existing LAN |
Technical Specifications
| IP FORCE SPECIFICATIONS |
|---|
| Dimensions - 217x109x83 mm |
| Protection level - IP 65, selected models IP69K |
| Power - 12V±15%/2A DC or PoE |
| Temperature Range - -40°C — 70°C non-operating/storage 40°C — 55°C operating |
| Relative Humidity: (non-condensing) - 10% — 95% |
| POE - PoE 802.3af (Class 0 — 12.95W) |
| LAN - 10/100BASE-TX with Auto-MDIX |
| Relay Outputs - NC/NO contacts, Max 30V/1A AC/DC |
| Active Output - 9V — 13V DC/700mA |
| Supported RFID cards 125 kHz - EM-40XX, HID Prox (26/37 b) |
| Supported RFID cards 13,56 MHz - Mifare Classic 1k & 4k, DESFire (EV1, EV2 and EV3), HID iCLASS |
| Signalling protocol - SIP 2.0 (RFC — 3261) |
| Quick dial buttons - Transparent, white backlit buttons with easily replaceable name tags |
| Number of buttons - 1, 2 or 4 |
| Numeric keypad - Optional |
| Microphone - 2 integrated microphones |
| Loudspeaker - 1W (Optionally 10W) |
| Audio Codecs - G.711, G.729 |
| Camera resolution - 640 (Horizontal) x 480 (Vertical) |
| Camera view angle - 135° (H), 109° (V) |
| IR Night Vision - Yes |
| Video streaming codecs - H.263+, H.263, H.264, MJPEG |
